SmallRig VB99 SE Mini V-Mount Battery (6800mAh)
Key Features
- 99Wh Lithium-Ion V-Mount Battery
- USB-C 65W Fast Charge in Just 2.5 Hours
- USB-A Output, 2 DC Barrel Outputs
- D-Tap Output, USB-C Input/Output
- Simultaneous USB-A/USB-C Output
- Up to 10A Draw, OLED Display
- Control Button and Discharge Mode
- Ultracompact, Fire-Resistant Casing
SmallRig VB99 SE Overview

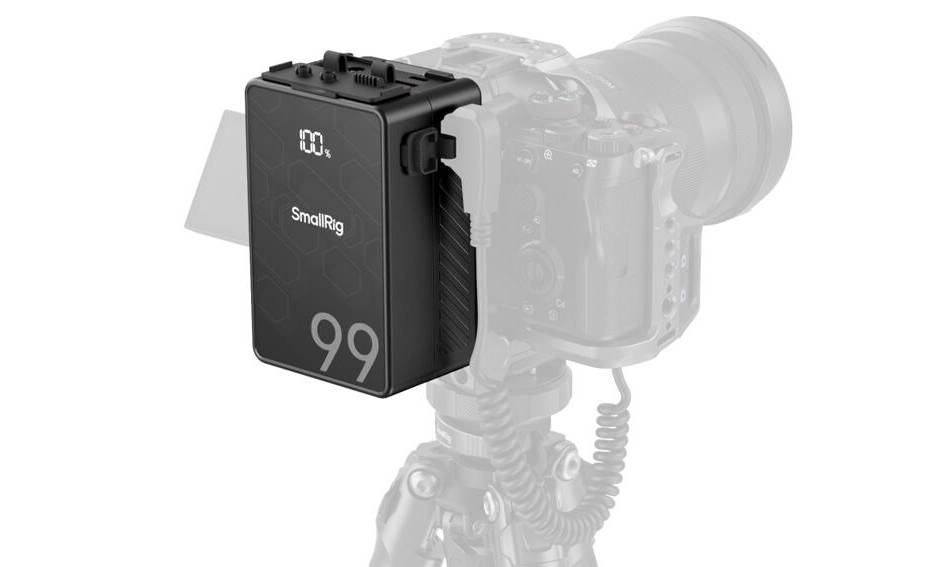

The VB99 SE Mini V-Mount Battery from SmallRig is an ultracompact, lightweight 99Wh battery that can support up to a 10A draw at a nominal 14.8V. This compact, travel-friendly battery is suitable for powering handheld cameras, drones, and gimbals, and it has a fire-resistant casing. A built-in OLED display shows the remaining battery capacity and status.

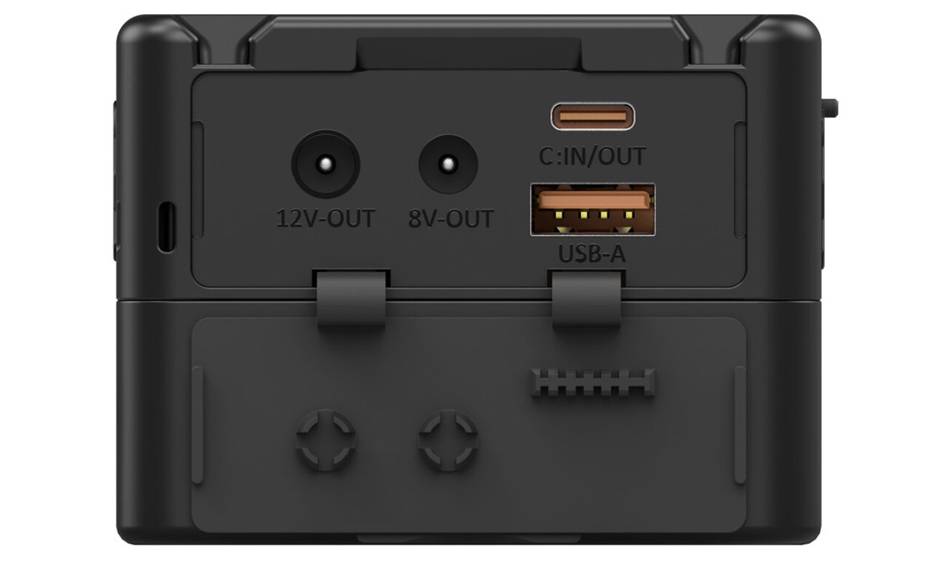

The VB99 provides multiple accessory ports, including one 14.8V D-Tap output, one 8 VDC barrel output, one 12 VDC barrel output, one USB-C output, and one USB-A output for powering various accessories, cameras, or mobile devices. The battery can be charged using a standard V-mount charger, an optional D-Tap charger, or by using the USB-C input/output with a 65W PD fast charger. The USB-C and USB-A ports are on a separate circuit and can output simultaneously. The button allows you to set display preferences, as well as set the battery to discharge mode.
| Mount / Series Type | V-Mount |
| Chemistry | Lithium-Ion |
| Battery Capacity | 6800 mAh / 98.87 Wh |
| Output Voltage | 14.54 VDC |
| Maximum Load | 100 W, 10 A (Peak) |
| Accessory I/O | 1x D-Tap / P-Tap Output 14.54 V, 10 A Regulated 1x USB-A Output 5 V, 3 A Regulated 1x D-Tap / P-Tap Input 8 A Regulated 1x USB-C Input/Output 65 W Regulated 1x Barrel 2.5 mm Output 12 V Regulated 1x Barrel 2.1 mm Output 8 V Regulated |
| USB Output | 5 V, 3 A 9 V, 3 A 12 V, 3 A 15 V, 3 A 20 V, 3.25 A |
| Charging Voltage | 16.8 VDC |
| Accessory Mounting Thread | No |
| Operating Temperature | 14 to 113°F / -10 to 45°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Certifications | CE, FCC, KC, PSE, RCM, RoHS |
| Environmental Resistance | No |
| Dimensions (W x H x D) | 4.4 x 2.8 x 2.1" / 112 x 72 x 53 mm |
| Weight | 21 oz / 595 g |
| SmallRig VB99 SE Mini V-Mount Battery (6800mAh) |
